Soil Spectra
Frugal Innovation From Farmsys

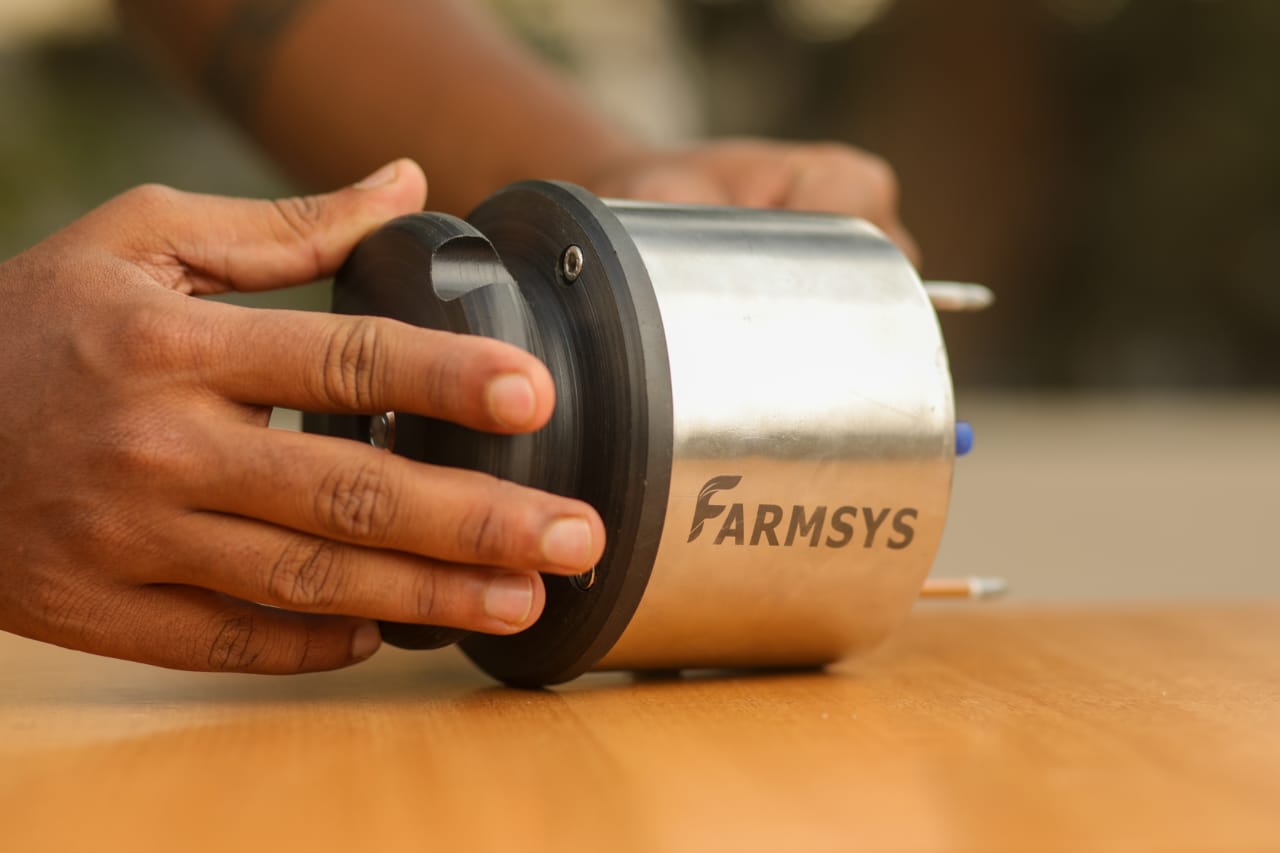

Soil Spectra 3.0
Frugal compact gadget to measure vital soil parameter

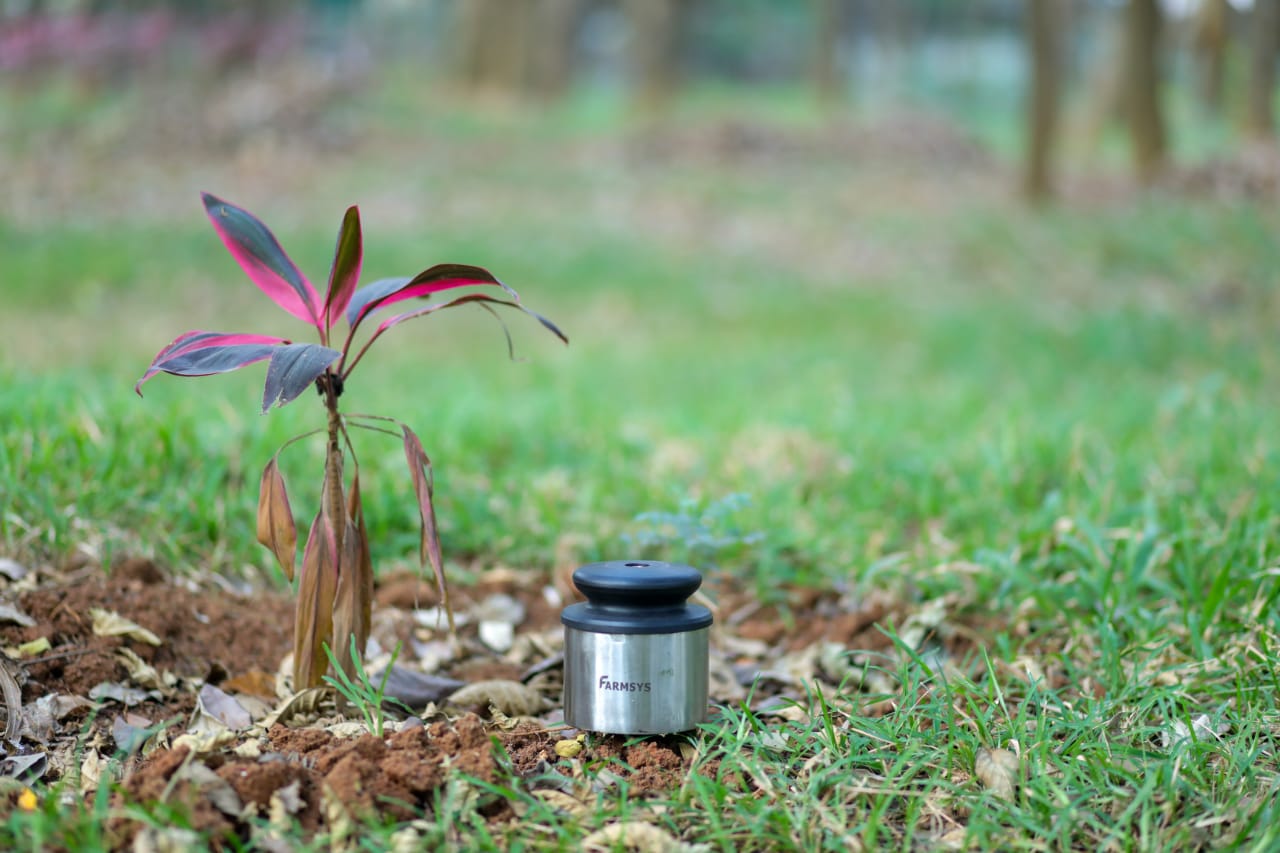

Waterproof and durable probe to detect soil NPK, Temperature, Moisture, PH data
Portable design and works android mobile application to read and sync data with cloud.
Device support BLE and WIFI. Compatible with Farmsys eFarm NPK Android application.

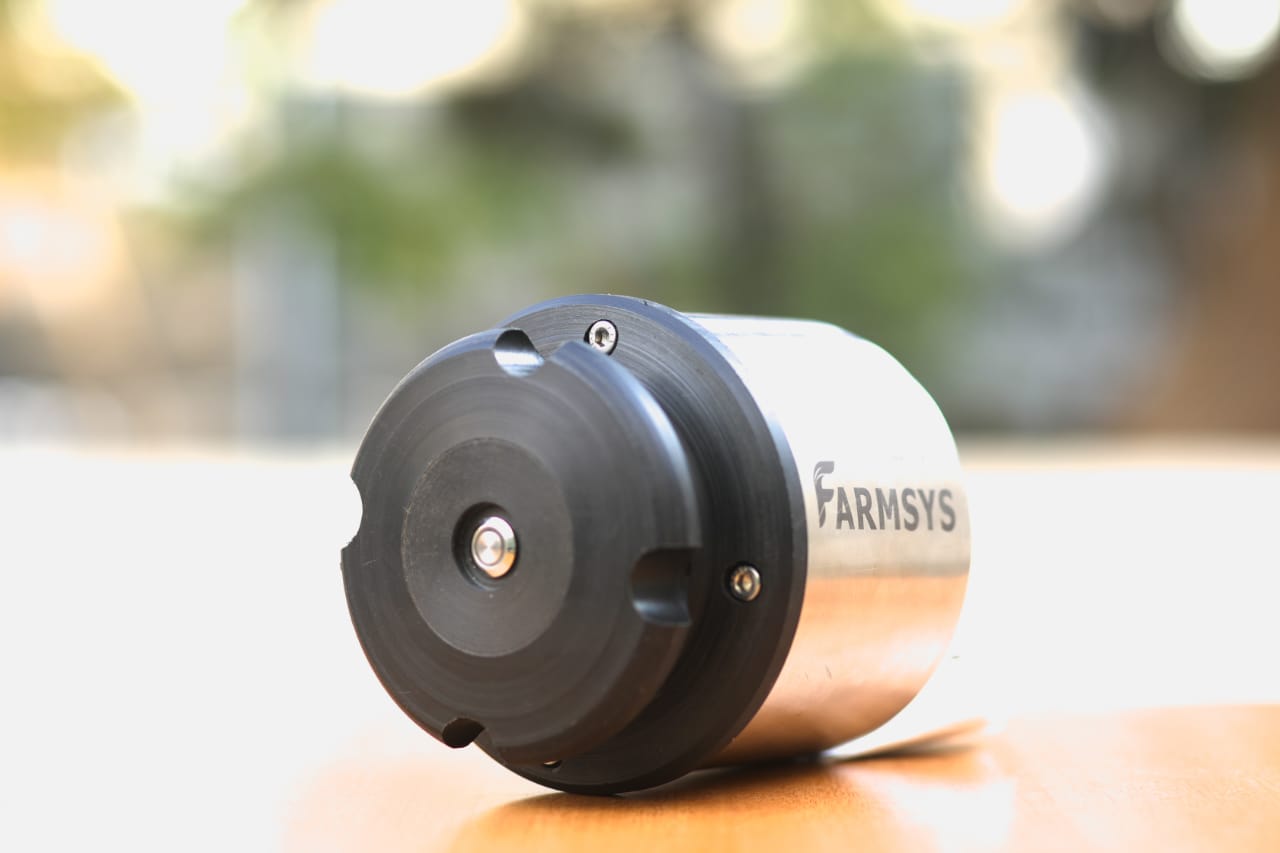

Splashproof Compact Design

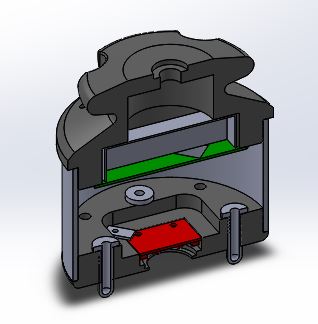

The device is made up of high grade SS and Nylon along with other sensors and circuitary

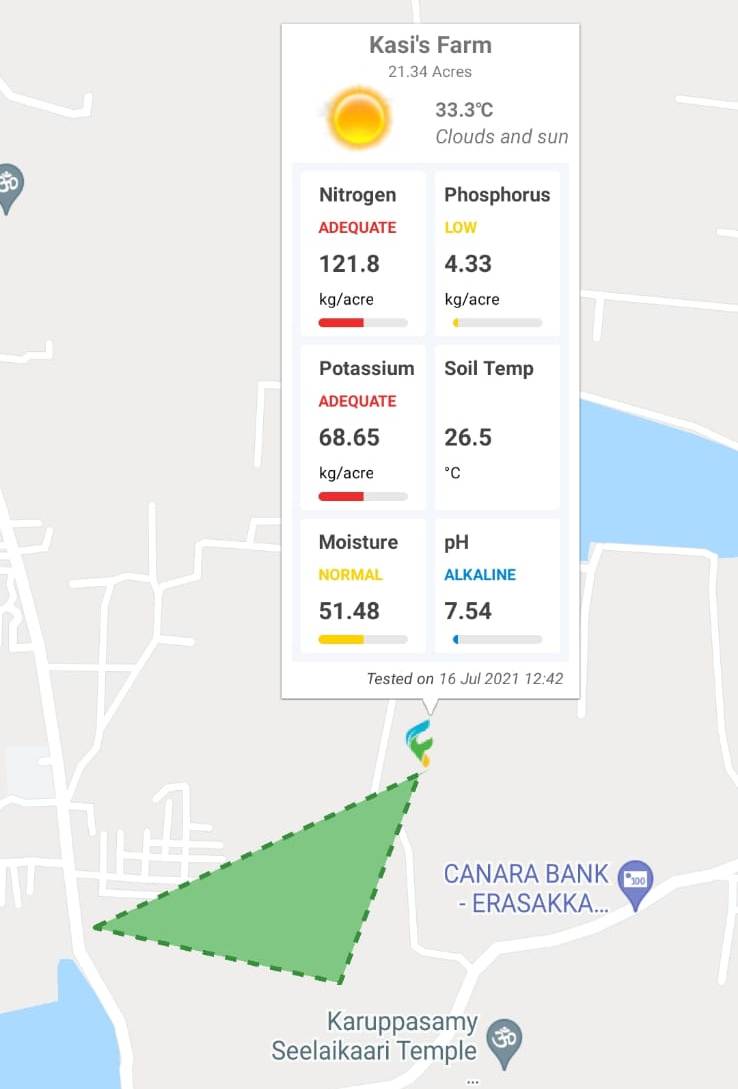

GeoFencing and Live Weather
Farmsys eFarm NPK app provides soil nutrient information along with Farm geo location and weather information
| Interface | BLE and WIFI Interface |
| Software | Android Application and Web Dashboard |
| NPK Values | 0-400 kg/ha |
| Soil Temperature | 0-40 ‘C |
| pH | Acidic (3.5)-Alkaline (9) |
| Soil Moisture | Dry(0)-Wet(50% Volumetric water content ) |
| Calibration Frequency | 100 days |
| Frame and Enclosure | Teflon, SS316 , ABS |
| Battery | Model No- 18650, Capacity- 2500mah |
| Input charging Supply | 5 volts DC |
